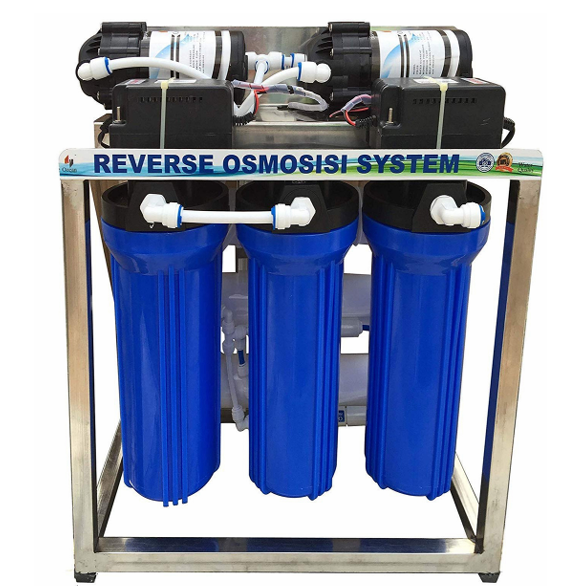

A 25 LPH (25 Liters Per Hour) RO Plant is a small-scale reverse osmosis system.
- Capacity – 25 liters per hour.
- Filtration Stages – 5 to 7 stages.
- High-quality RO membrane.
- Heavy-duty booster pump.
- 10-15L storage tank.
- Auto Shut-Off system.
- Filter Life Indicator.
- Operates on 220V AC.

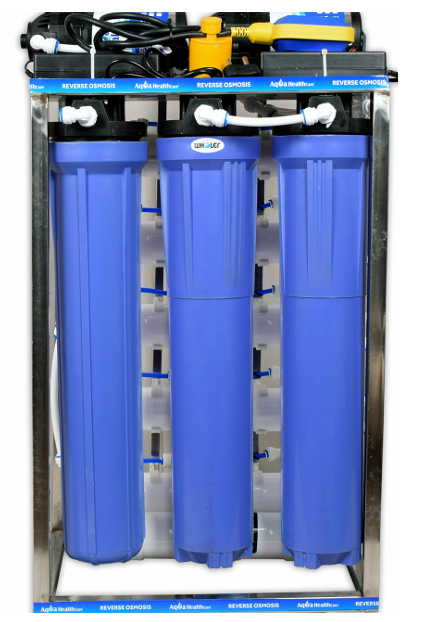

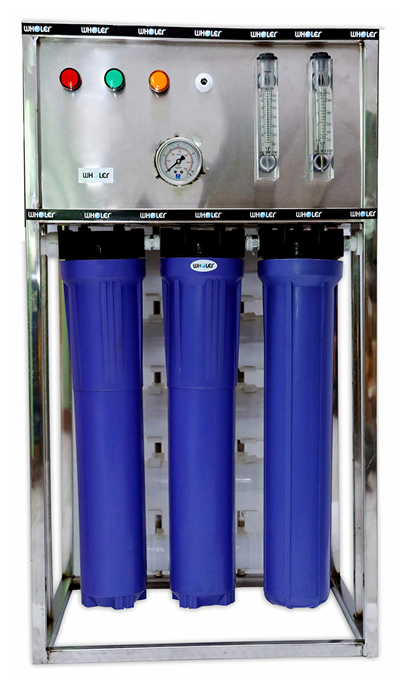

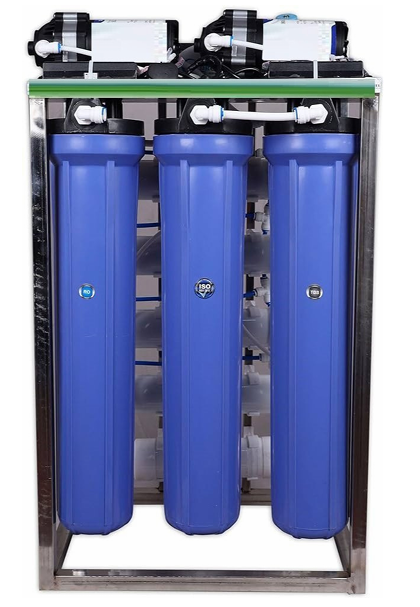

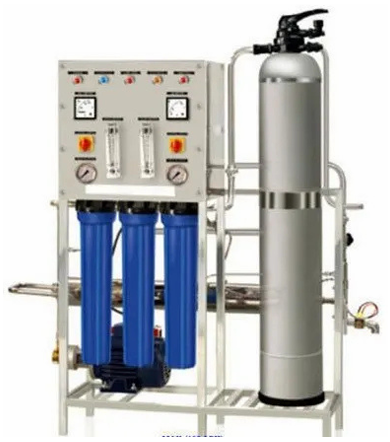

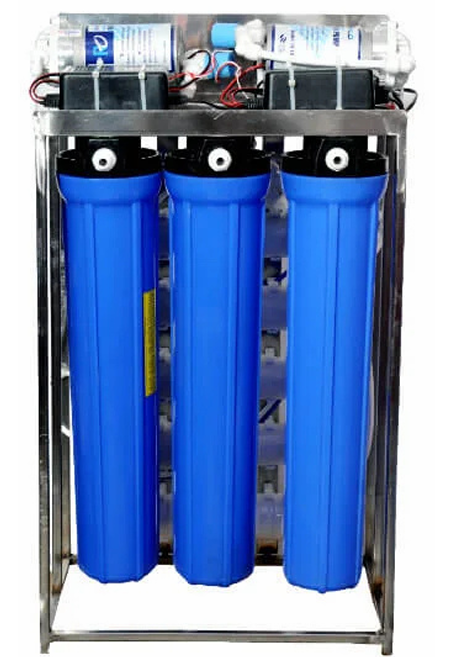

A 50 LPH (50 Liters Per Hour) RO Plant is a commercial-grade reverse osmosis water purification system.
- Capacity: 50 LPH (liters per hour)
- TDS Reduction: Up to 95-98%
- Membrane Type: 2 x 100 GPD RO membranes or single high-capacity membrane
- Operating Pressure: 80-120 PSI
- Recovery Rate: 40-50%
- Power Consumption: 230V AC, 50 Hz
- Pump Type: Booster pump for efficient water flow
- Stainless steel or powder-coated MS frame
- Automation: Semi-automatic or fully automatic
- Removes salts, bacteria, viruses & heavy metals
- Compact Design: Space-saving installation
- Energy Efficient operation
- Corrosion-resistant durable body
- Easy Maintenance with replaceable filters
- Optional UV & UF protection system
A 100 LPH (100 Liters Per Hour) RO Plant is ideal for small businesses, institutions, and industries requiring purified water.
- Capacity: 100 liters per hour
- Operating Pressure: 100-200 PSI
- Membrane Type: TFC (Thin Film Composite)
- Membrane Size: 4040 or 3012 (varies by brand)
- Recovery Rate: 40-50%
- TDS Rejection: 90-98%
- Low maintenance and easy operation
- Energy-efficient design
- Auto shut-off feature to prevent water wastage
- Compact and space-saving structure
A 150 LPH ( 150 Liters Per Hour) RO Plant is a commercial reverse osmosis system designed to purify water efficiently.
Capacity & Performance:
Enquiry Now
- Output: 150 liters per hour
- Daily Production: 3,600 liters (assuming 24-hour operation)
- Purification Stages: Typically 5–7 stages
- Membrane Type: 2–3 RO membranes (typically 75–100 GPD each)
- Pump Type: High-pressure booster pump for consistent performance
- Recovery Rate: 30–50% (varies based on feed water quality)
- Rejection Rate: 90–98% of TDS and contaminants
- Operating Pressure: 100–200 PSI
- Compact & Durable: Space-saving design with SS (Stainless Steel) or MS (Mild Steel) frame
- Auto & Manual Flushing: Enhances membrane life by preventing clogging
- TDS Controller (optional): Allows adjusting mineral content in purified water
- Auto Shut-Off: Prevents dry-run damage to the pump
A 200 LPH ( 200 Liters Per Hour) RO Plant is a commercial-grade water purification system designed to produce 200 liters of purified water per hour.
Technical Specifications & Additional Features:
Enquiry Now
- Automatic & Manual Operation
- TDS Controller for Adjustable Purity
- Stainless Steel (SS) or FRP Body for Durability
- Anti-Scalant Dosing System (Optional)
- Alkaline or Mineral Enhancer (Optional)
- Capacity: 200 LPH (Approx. 2000 liters per 10 hours).
- Recovery Rate: 50-60% (Varies based on feed water quality)
- TDS Reduction: Removes 90-98% of dissolved solids.
- Power Consumption: Generally 1-2 kW depending on pump type.
A Commercial UV Water Purification Plant is designed for disinfecting water by eliminating bacteria, viruses, and other harmful microorganisms using Ultraviolet (UV) technology.
Advanced UV Disinfection Technology
Enquiry Now
- Uses UV-C light (254 nm) to eliminate 99.99% of bacteria, viruses, and microorganisms
- No chemicals used, preserving the natural taste of water
- Pre-filtration System for sediment and chlorine removal.
- Automatic Timer & Flow Control Sensors for precise disinfection.
- Alkaline/Mineral Enhancers to add essential minerals.
- TDS Controller to maintain essential minerals while purifying.
- Custom Flow Rate & SS 316 Grade for highly corrosive environments.
